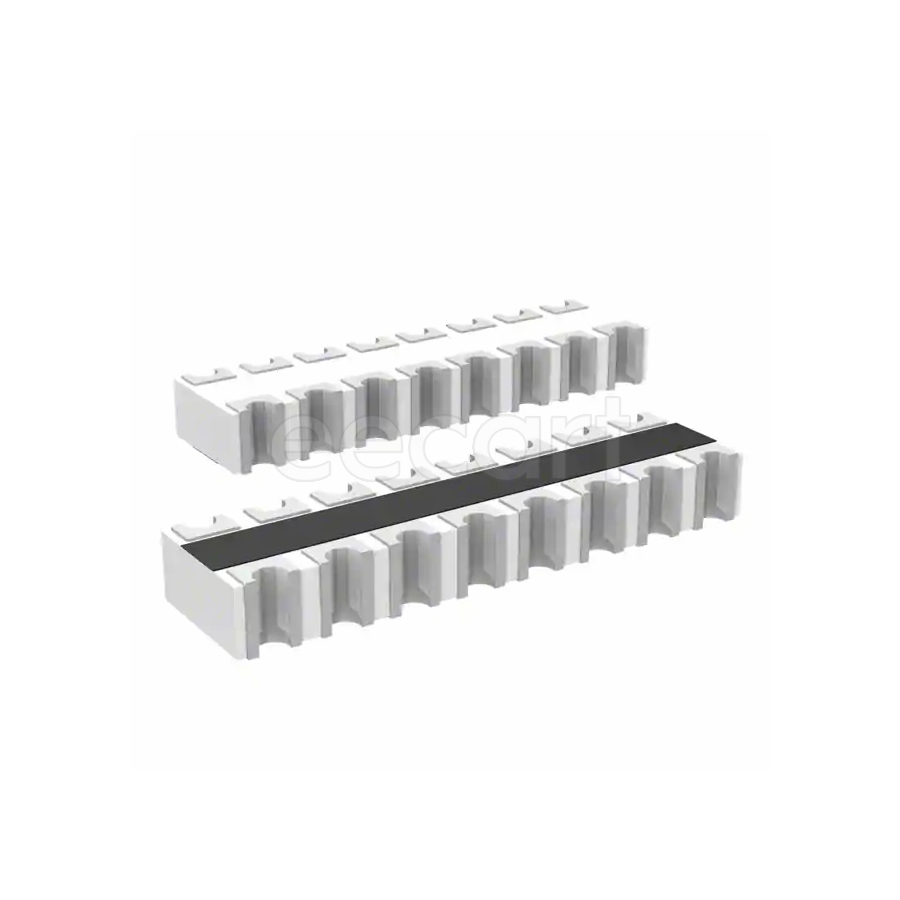

742C163472JP
Manufacturer:
CTS Corporation
Mfr.Part #:
742C163472JP
Datasheet:
Description:
Resistor Arrays 0603×8 SMD/SMT 4.7 kΩ 5 % Number of Resistors:8 Circuit Type:Isolated
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Length | 6.4 mm |
| Width | 1.6002 mm |
| Termination | Concave |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 0603 |
| Number of Pins | 16 |
| Resistance | 4.7 kΩ |
| Power Rating | 500 mW |
| Temperature Coefficient | 200 ppm/°C |
| Number of Resistors | 8 |
| Power Per Element | 504 mW |
| Height | 711.2 µm |
| Circuit Type | Isolated |
| Depth | 1.6 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Number of Terminals | 16 |
| Number of Elements | 8 |
| Terminal Pitch | 800 µm |
| Working Voltage | 50 V |
| Military Standard | Not |
| Power Dissipation | 63 mW |
| Height - Seated (Max) | 0.7 mm |
| Packaging | Reel |
Stock: 90826
Distributors
pcbx
pcbxUnit Price$0.28750
Ext.Price$0.28750
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28750 | $0.28750 |
| 10 | $0.18271 | $1.82710 |
| 50 | $0.13753 | $6.87650 |
| 100 | $0.12270 | $12.27000 |
| 500 | $0.09617 | $48.08500 |
| 1000 | $0.08749 | $87.49000 |
| 3000 | $0.07384 | $221.52000 |
